WC0601-E Installation Guide

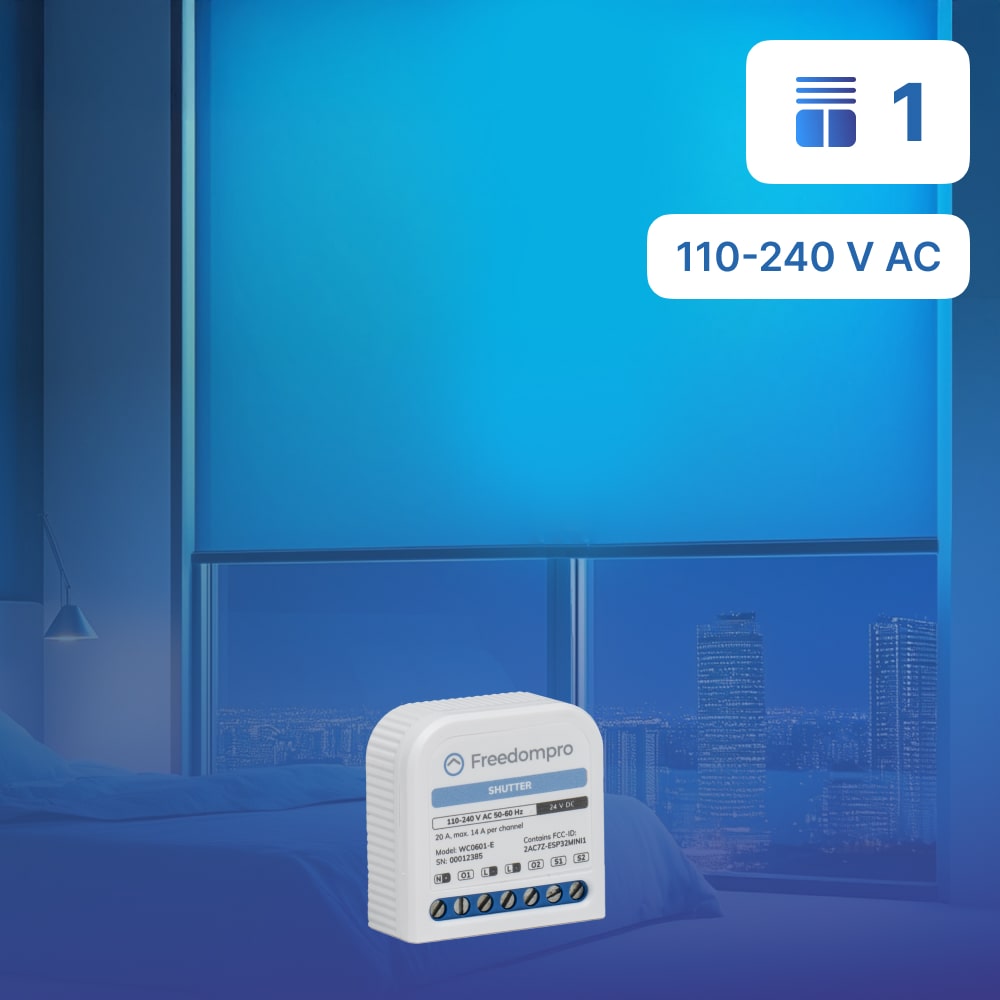

Smart WiFi Switch Module for 1 Roller Shutter WC0601-E
WC0601-E is the ultra-compact WiFi module for controlling 1 electric roller shutter or rolling motor with an app, voice or physical commands. It can be installed directly in a flush-mounted box (502/503) or in the roller shutter box, without invasive modifications.
Compatible with Matter, Apple HomeKit, Google Home, Alexa, Home Assistant and other smart platforms. Allows remote control, automations, management from traditional buttons, consumption monitoring and self-calibration of the limit switch.
Technical Features
| Model | WC0601-E |
| Dimensions | 18 x 42.3 x 41.5 mm |
| Installation | 502/503 built-in box or roller shutter box |
| Diet | 110–240V AC ±10%, 50–60Hz |
| Absorption | < 1.2W |
| Maximum current | 14A |
| Wi-Fi | IEEE 802.11 b/g/n (2.4GHz) |
| Certifications | Matter, CE, HomeKit, Google, Alexa, Home Assistant, SmartThings |
| Consumption monitoring | Yes, in real time |
| Smart functions | Self-calibration, scenarios, automations, voice commands, remote control |
| Operating temperature | from -5°C to +45°C |
How to install
- Turn off the electricity.
- Insert the WC0601-E module into box 502/503 behind the control or into the box.

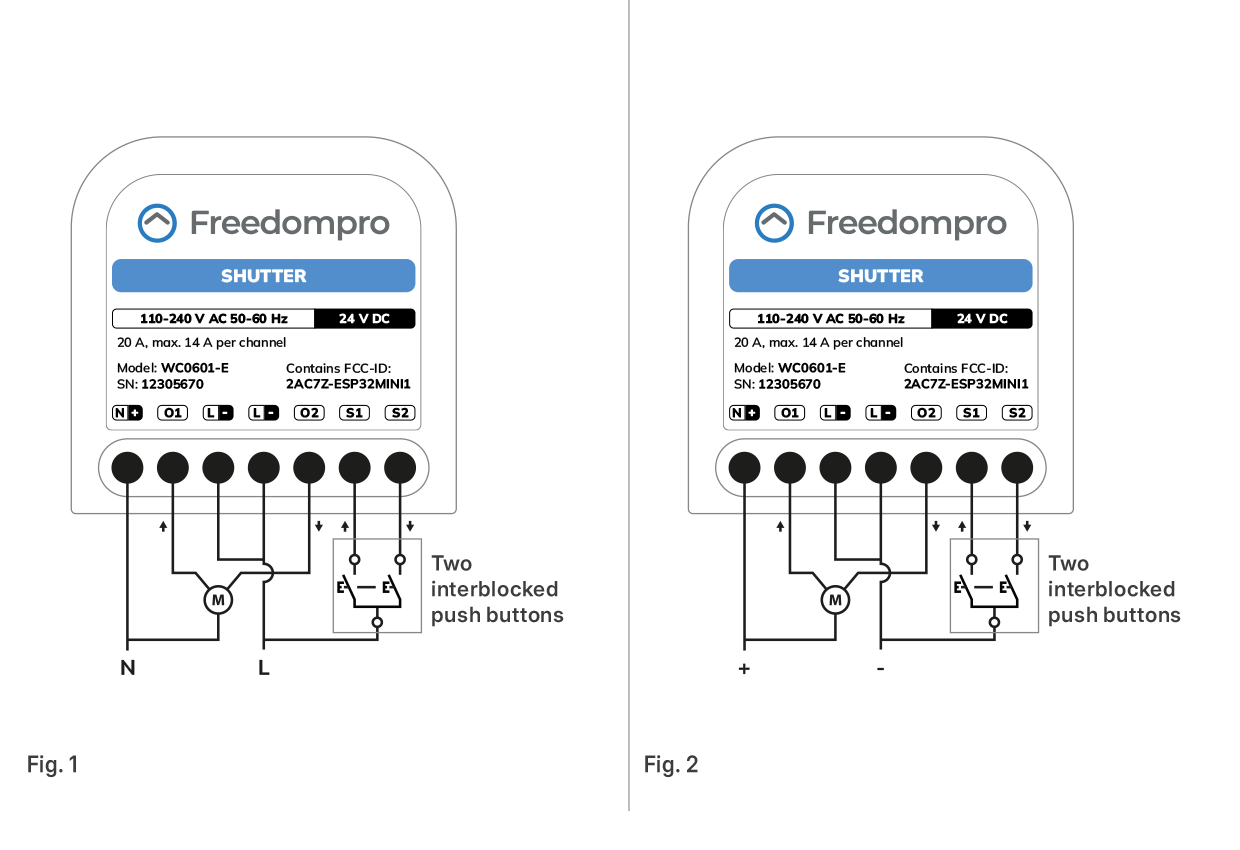

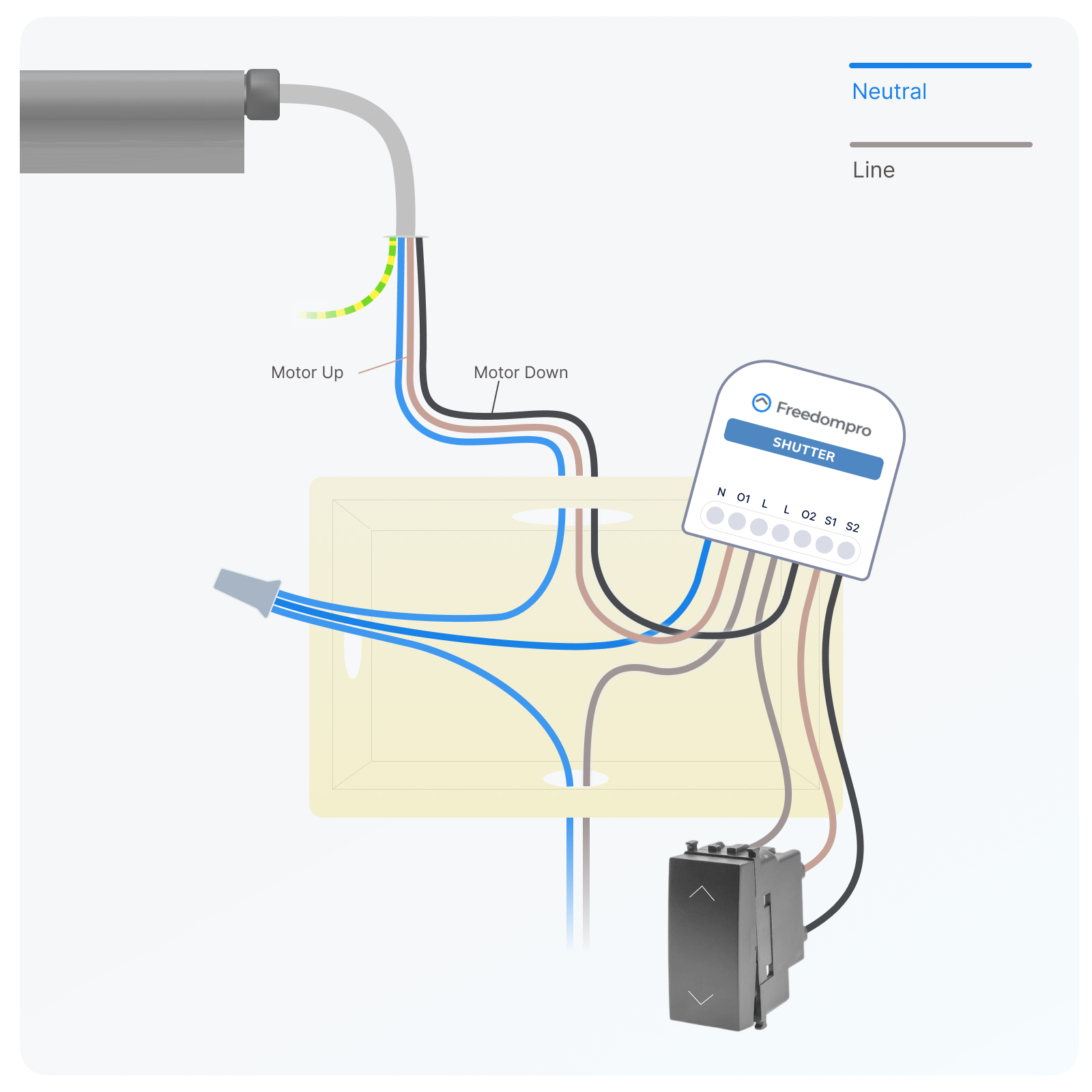

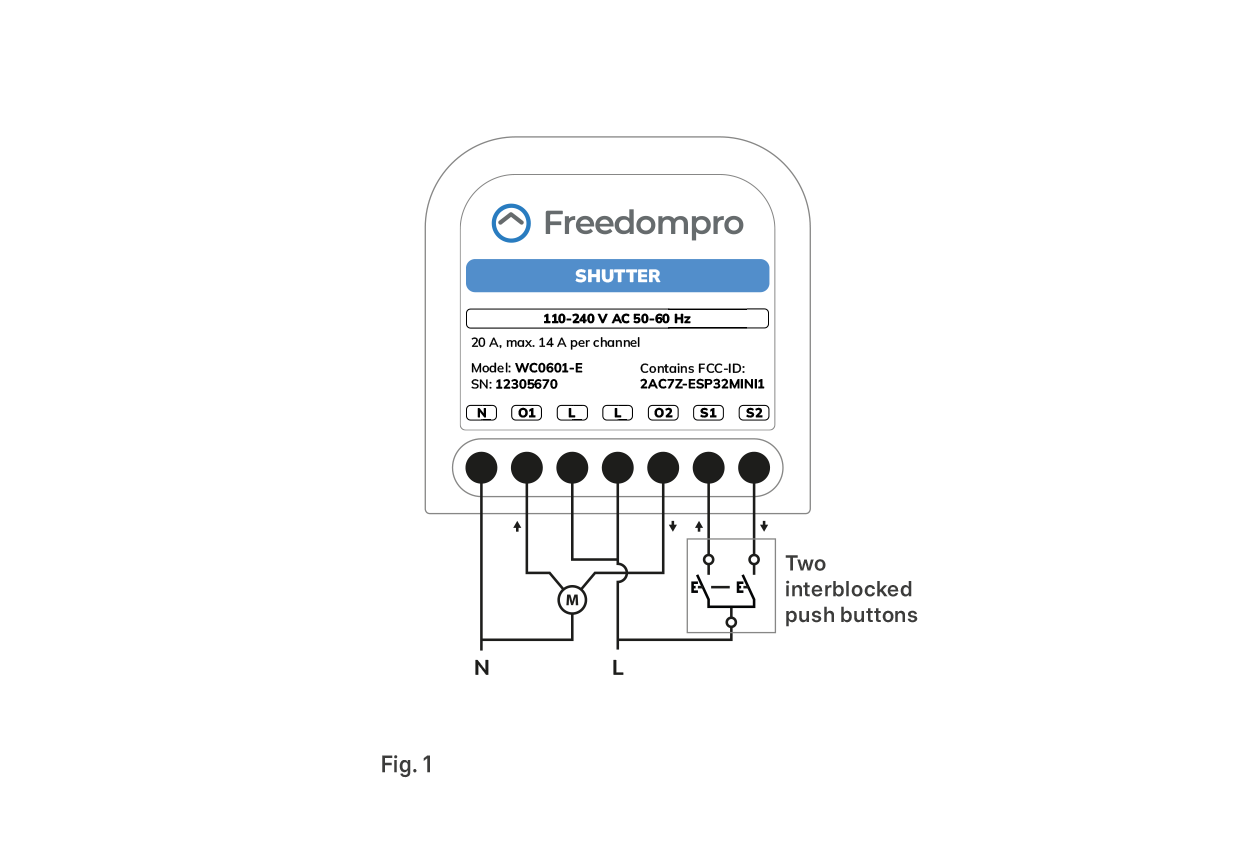

- Connect the roller shutter motor to the up/down output terminals (O1/O2) following the diagram.
- Connect the up/down buttons/switches to the S1/S2 inputs.
- Connect the phase (F) and neutral (N) power wires to the module.
- Reconnect power and verify that the status LED is on.
- Set up the module via the Freedompro app by following the wizard.
Notes:
The module is compatible with 3-wire motors (up, down and power).
For proper operation, after installation and pairing in the Freedompro app, it is important to calibrate and choose the button type before pairing with other apps.
Tip: The integration of this component into motorized systems (roller shutters, awnings, etc.) falls under the Machinery Directive 2006/42/EC and requires CE marking, risk analysis and compliant documentation. Installation must be performed by personnel competent in machine safety.
