LB0801-F Installation Guide
Smart WiFi Switch Module for 1 Light LB0801‑F
The LB0801‑F is the ultra-compact WiFi module designed to make the control of 1 light point (lamp, spotlight, LED strip, ceiling light) smart with an app, voice or physical buttons. It can be easily installed in the flush-mounted box, without modifying the electrical system.
This model is compatible with: traditional switches/buttons, Alexa, Google Home, Apple HomeKit and Home Assistant and other smart platforms. It allows you to manage your lights wherever you are, even remotely. Control is always available even offline via physical buttons
Technical Features
| Model | LB0801-F |
| Dimensions | 18 x 42.3 x 41.5 mm |
| Installation | Flush-mounted box 502/503 |
| Diet | 12V +5% -15% DC |
| Absorption | < 1.2W |
| Maximum current | 16 A |
| Wi-Fi | IEEE 802.11 b/g/n (2.4GHz) |
| Certifications | Matter, CE, HomeKit, Google, Alexa, Home Assistant |
| Consumption monitoring | Yes, in real time |
| Operating temperature | from -5°C to +45°C |
How to install
- Disconnect the power supply.
- Insert the LB0801‑F module into the flush-mounted box (behind the button/switch).

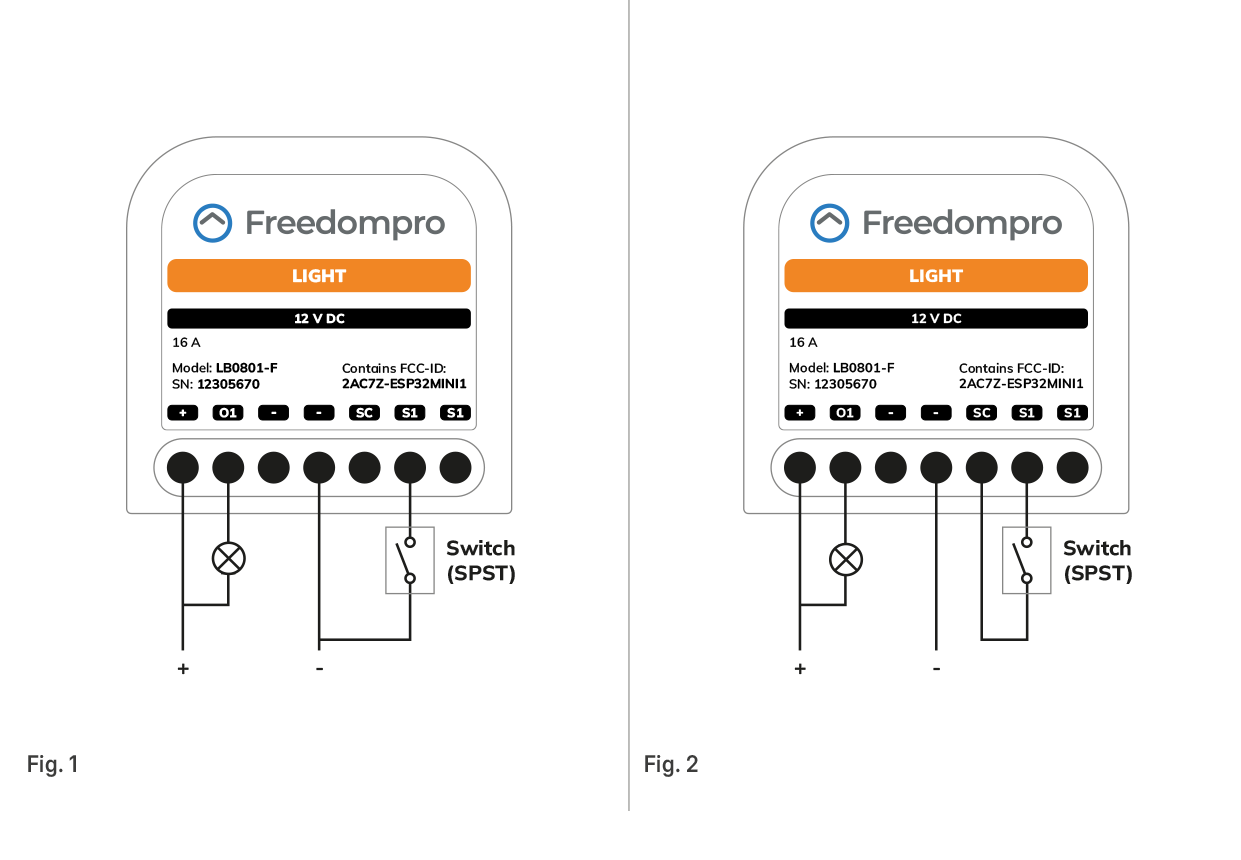

- Connect the light wire to the O1 output terminal as shown in the diagram provided.
- Connect the button/switch to output S1.
- Connect the power wires (+/– respecting the polarity) to the module.
- Reconnect power and verify that the status LED is on.
- Set up the module via the Freedompro app by following the wizard.
Tip: If you are inexperienced with electrical systems, hire a qualified professional.
