LB0104-A Installation Guide
DIN Rail WiFi Smart Switch Module for 4 Lights LB0104-A
LB0104-A is the DIN rail WiFi module that allows you to control up to 4 lights (spotlights, ceiling lights, LED strips, etc.) with an app, voice or physical buttons, wherever you are. Compatible with all traditional switches, it is Matter certified and integrates with Alexa, Google Home, Apple HomeKit, Home Assistant and other smart platforms.
Manage and monitor your lights' consumption in real time. Easy installation in the junction box, without modifying the existing electrical system. Reliable even offline: if the Internet is down, you can continue to use the physical buttons without problems.
Technical Features
| Model | LB0104-A |
| Dimensions | 33 x 36 x 90 mm |
| Weight | 92 g |
| Installation | DIN rail (junction box) |
| Diet | 110–240V AC ±10%, 50–60Hz |
| Absorption | < 2.5W |
| Maximum current | 20A (max 5A per channel) |
| Wi-Fi | IEEE 802.11 b/g/n (2.4GHz) |
| Bluetooth | Yes |
| Certifications | Matter, EC |
| Consumption monitoring | Yes, in real time |
| Operating temperature | from -5°C to +45°C |
How to install
- Disconnect the power supply.
- Install the LB0104-A module on a DIN rail, inside the junction box.

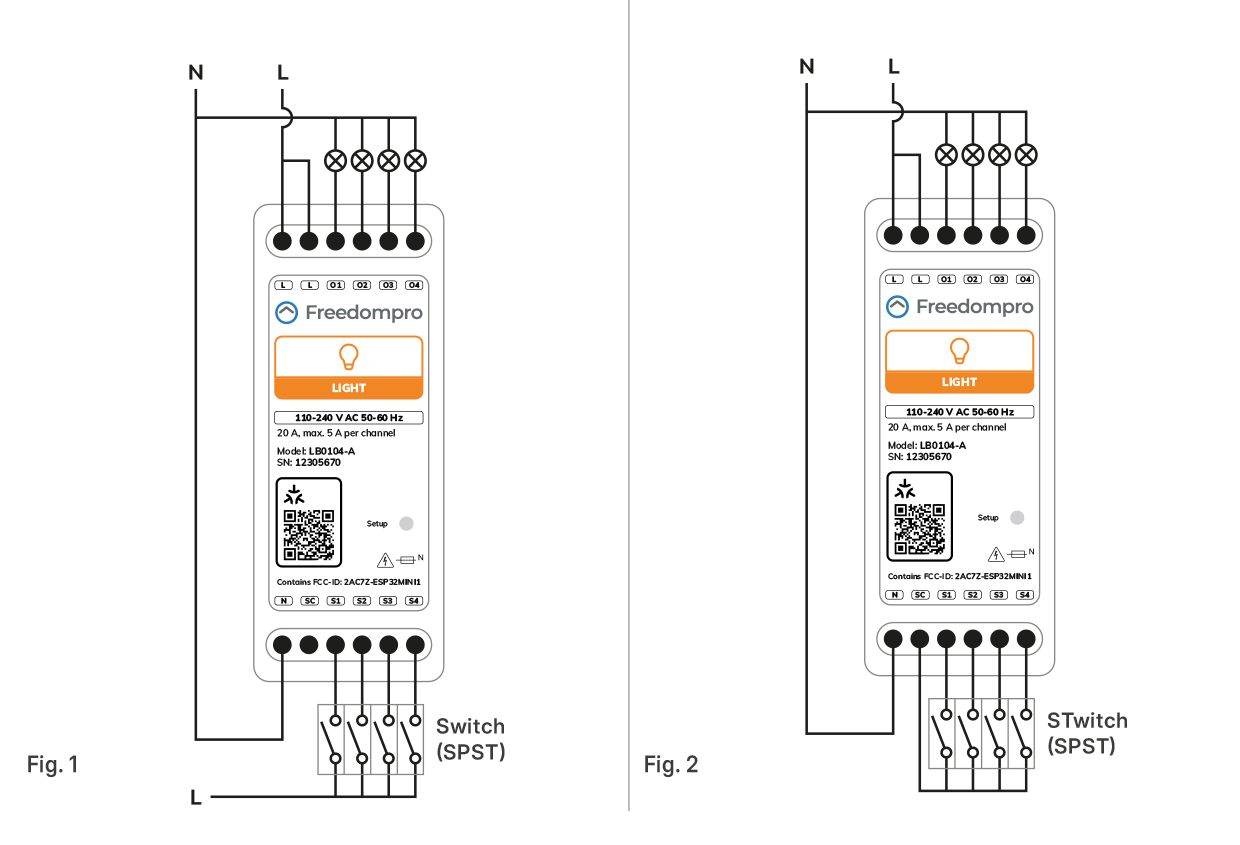

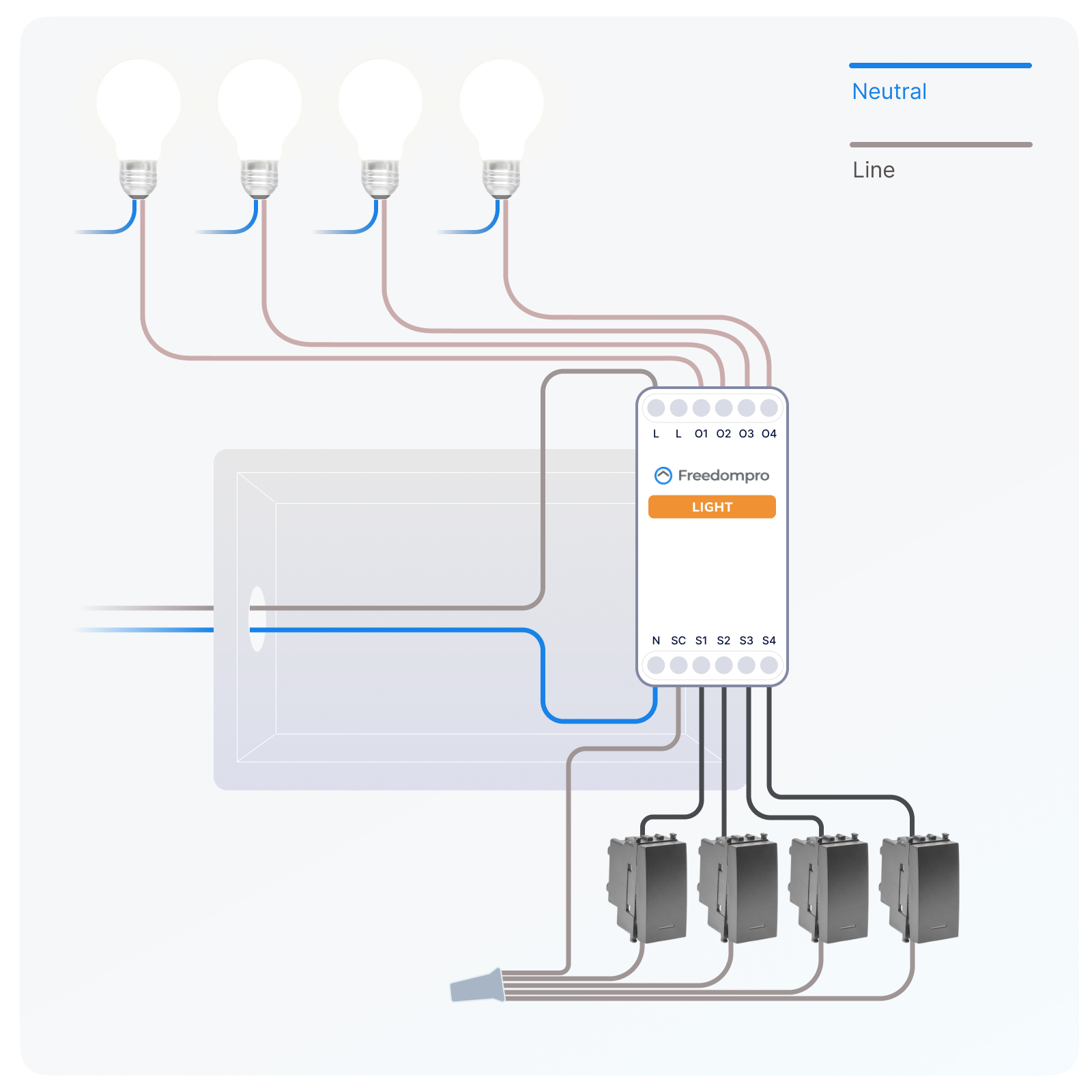

- Connect the wires of the 4 lights (O1/O2/O3/O4) to the output terminals as shown in the diagram provided.
Connect the buttons/switches to the corresponding inputs S1/S2/S3/S4.
- Connect the phase (F) and neutral (N) power wires to the module.
- Reconnect power and verify that the status LED is on.
- Set up the module via the Freedompro app by following the wizard.
Notes:
The button return connection can be connected to the phase F terminal or to the common SC.
